Defying Extreme Temperatures: High-temperature self-lubricating bearings are designed to operate in environments where temperatures reach far beyond the capabilities of traditional bearings. Whether it's in industrial ovens, kilns, furnaces, or high-temperature manufacturing processes, these bearings thrive where others falter. They maintain their integrity, maintain smooth operation, and continue to provide exceptional performance, even at elevated temperatures.

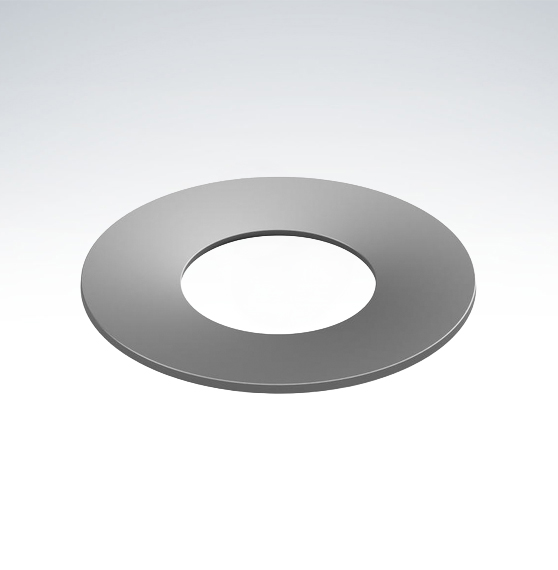

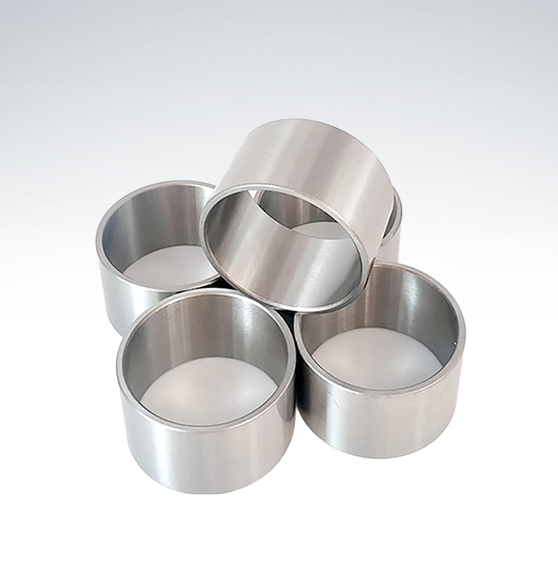

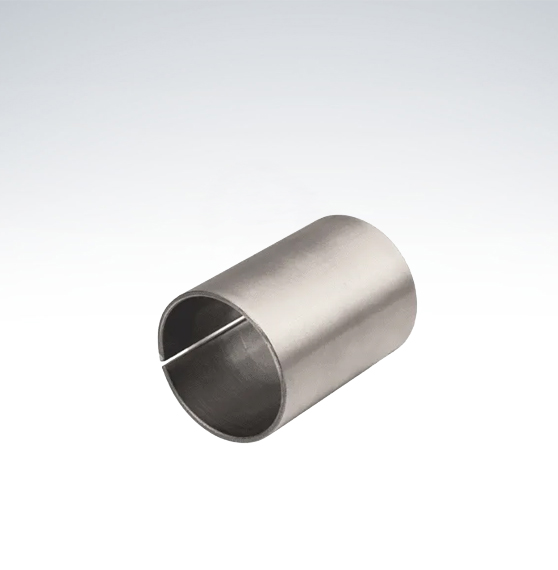

The available products made in HT-316 are the plain bearings (Bush) ISO 3547 (Din 1494), thrust washers and strips on customer drawings HT -316 material can also be manufactured in:
Bearing and washer with dimensions on request
Special part on customer drawings
High load capacity in low temperature
Self-lubricating
Low static and dynamic friction factors
Minimum wear and excellent life service
Easy to mount
High chemical inertia.
| Sliding layer | HT coating | 50 microns (Thickness) |
|---|---|---|
| Supporting cell | SS 316 | 0.85-3mm Max.(depending on dimension of the bearing) |
| Max. Load | Static Very low speed Rotating oscillating |
250N/mm2 140N/mm2 60N/mm2 |
| Max. PV dry running | Short term operation Continuous operation |
3.6 N/mm2*m/s 1.8 N/mm2*m/s |
| Temp. Limit | -180 to +480 Max. | |
| Friction co-efficient | 0.03~0.20 | |
| Max speed | Dry running Hydrodynamic operation |
2m/s >2m/s |
| Thermal conductivity | 42W (m*K)-1 | |
| Coefficient of thermal expansion | 11.10k-1 |
| AXLE | HOUSING H7 | OD Tolerance | ID After fixing | Wall thickness | L0-0.40 (d ≤ 30 L - 0.3d ≥ 30 L - 0.4) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 8 | 10 | 12 | 15 | 20 | 25 | 30 | 40 | 50 | |||||
| 6-0.013-0.028 | 8+0.015 | 8+0.055+0.025 | 6.055 5.990 |
1.005 0.980 |
0606 | 0608 | 0610 | |||||||
| 8-0.013-0.028 | 10+0.015 | 10+0.055+0.025 | 8.055 7.990 |
0806 | 0808 | 0810 | 0812 | 0815 | ||||||
| 10-0.013-0.028 | 12+0.018 | 12+0.065+0.030 | 10.058 9.990 |
1006 | 1008 | 1010 | 1012 | 1015 | 1020 | |||||
| 12-0.016-0.034 | 14+0.018 | 14+0.065+0.030 | 12.058 11.990 |
1206 | 1208 | 1210 | 1212 | 1215 | 1220 | 1225 | ||||
| 13-0.016-0.034 | 15+0.018 | 15+0.065+0.030 | 13.058 12.990 |
1310 | 1320 | |||||||||
| 14-0.016-0.034 | 16+0.018 | 16+0.065+0.030 | 14.058 13.990 |
1410 | 1412 | 1415 | 1420 | 1425 | ||||||
| 15-0.016-0.034 | 17+0.018 | 17+0.065+0.030 | 15.058 14.990 |
1510 | 1512 | 1515 | 1520 | 1525 | ||||||
| 16-0.016-0.034 | 18+0.018 | 18+0.065+0.030 | 16.058 15.990 |
1610 | 1612 | 1615 | 1620 | 1625 | ||||||
| 17-0.016-0.034 | 19+0.021 | 19+0.075+0.035 | 17.061 16.990 |
1.505 1.475 |
1710 | 1712 | 1720 | |||||||
| 18-0.016-0.034 | 20+0.021 | 20+0.075+0.035 | 18.061 17.990 |
1810 | 1812 | 1815 | 1820 | 1825 | ||||||
| 20-0.020-0.041 | 23+0.021 | 23+0.075+0.035 | 20.071 19.990 |
2010 | 2012 | 2015 | 2020 | 2025 | 2030 | |||||
| 22-0.020-0.041 | 25+0.021 | 25+0.075+0.035 | 22.071 21.990 |
2210 | 2212 | 2215 | 2220 | 2225 | 2230 | |||||
| 24-0.020-0.041 | 27+0.021 | 27+0.075+0.035 | 24.071 23.990 |
2415 | 2420 | 2425 | 2430 | |||||||
| 25-0.020-0.041 | 28+0.021 | 28+0.075+0.035 | 25.071 24.990 |
2510 | 2512 | 2515 | 2520 | 2525 | 2530 | 2540 | 2550 | |||
| 28-0.020-0.041 | 32+0.021 | 32+0.085+0.045 | 28.085 27.990 |
2.005 1.970 |
2815 | 2820 | 2825 | 2830 | 2840 | |||||
| 30-0.020-0.041 | 34+0.025 | 34+0.085+0.045 | 30.085 29.990 |
3012 | 3015 | 3020 | 3025 | 3030 | 3040 | |||||
| 32-0.025-0.050 | 36+0.025 | 36+0.085+0.045 | 32.085 31.990 |
3220 | 3230 | 3240 | ||||||||
| 35-0.025-0.050 | 39+0.025 | 39+0.085+0.045 | 35.085 34.990 |
3512 | 3515 | 3520 | 3525 | 3530 | 3540 | 3550 | ||||
| 38-0.025-0.050 | 42+0.025 | 42+0.085+0.045 | 38.085 37.990 |
3815 | 3830 | 3840 | ||||||||
| 40-0.025-0.050 | 44+0.025 | 44+0.085+0.045 | 40.085 39.990 |
4012 | 4020 | 4025 | 4030 | 4040 | 4050 | |||||
| 20 | 25 | 30 | 40 | 50 | 60 | 70 | 80 | 100 | 115 | |||||
| 45-0.025-0.050 | 50+0.025 | 50+0.085+0.045 | 45.105 44.990 |
2.505 2.460 |
4520 | 4525 | 4530 | 4540 | 4550 | |||||
| 50-0.025-0.050 | 55+0.030 | 55+0.100+0.055 | 50.110 49.990 |
5020 | 5030 | 5040 | 5050 | 5060 | ||||||
| 55-0.030-0.060 | 60+0.030 | 60+0.100+0.055 | 55.110 54.990 |
5530 | 5540 | 5550 | 5560 | |||||||
| 60-0.030-0.060 | 65+0.030 | 65+0.100+0.055 | 60.110 59.990 |
6030 | 6040 | 6050 | 6060 | 6070 | ||||||
| 65-0.030-0.060 | 70+0.030 | 70+0.100+0.055 | 65.110 64.990 |
6530 | 6540 | 6550 | 6560 | 6570 | ||||||
| 70-0.030-0.060 | 75+0.030 | 75+0.100+0.055 | 70.110 69.990 |
7040 | 7050 | 7060 | 7070 | 7080 | ||||||
| 75-0.030-0.060 | 80+0.030 | 80+0.100+0.055 | 75.110 74.990 |
7530 | 7540 | 7550 | 7560 | 7570 | 7580 | |||||
| 80-0.030 | 85+0.035 | 85+0.120+0.070 | 80.155 80.020 |
2.490 2.440 |
8040 | 8050 | 8060 | 8070 | 8080 | 80100 | ||||
| 85-0.035 | 90+0.035 | 90+0.120+0.070 | 85.155 85.020 |
8540 | 8560 | 8580 | 85100 | |||||||
| 90-0.035 | 95+0.035 | 95+0.120+0.070 | 90.155 90.020 |
9040 | 9050 | 9060 | 9080 | 90100 | ||||||
| 95-0.035 | 100+0.035 | 100+0.120+0.070 | 95.155 95.020 |
9550 | 9560 | 9580 | 95100 | |||||||
| 100-0.035 | 105+0.035 | 105+0.120+0.070 | 100.155 100.020 |
10050 | 10060 | 10080 | 100115 | |||||||
| 105-0.035 | 110+0.035 | 110+0.120+0.070 | 105.155 105.020 |
10560 | 10580 | 105115 | ||||||||
| 110-0.035 | 115+0.035 | 115+0.120+0.070 | 110.155 110.020 |
11060 | 11080 | 110115 | ||||||||
| 120-0.035 | 125+0.040 | 125+0.170+0.100 | 120.210 120.070 |
2.465 2.415 |
12060 | 12080 | 120100 | |||||||
| 125-0.035 | 130+0.040 | 130+0.170+0.100 | 125.210 125.070 |
12560 | 125100 | 125115 | ||||||||
| 130-0.040 | 135+0.040 | 135+0.170+0.100 | 130.210 130.070 |
13060 | 13080 | 130100 | ||||||||
| 140-0.040 | 145+0.040 | 145+0.170+0.100 | 140.210 140.070 |
14060 | 14080 | 140100 | ||||||||
| 150-0.040 | 155+0.040 | 155+0.170+0.100 | 150.210 150.070 |
15060 | 15080 | 150100 | ||||||||
| 160-0.040 | 165+0.040 | 165+0.170+0.100 | 160.210 160.070 |
16060 | 16080 | 160100 | 160115 | |||||||
| 180-0.040 | 185+0.046 | 185+0.210+0.130 | 180.216 180.070 |
2.465 2.415 |
18080 | 180100 | ||||||||
| 190-0.046 | 195+0.046 | 195+0.210+0.130 | 190.216 190.070 |
19080 | 190100 | |||||||||
| 200-0.046 | 205+0.046 | 205+0.210+0.130 | 200.216 200.070 |
20060 | 20080 | 200100 | ||||||||
| 220-0.046 | 225+0.046 | 225+0.210+0.130 | 220.216 220.070 |
22080 | 220100 | |||||||||
| 250-0.046 | 255+0.052 | 255+0.260+0.170 | 250.222 250.070 |
25080 | 250100 | |||||||||
| 260-0.052 | 265+0.052 | 265+0.260+0.170 | 260.222 260.070 |
2.465 2.415 |
26080 | 260100 | ||||||||
| 280-0.052 | 285+0.052 | 285+0.210+0.130 | 280.222 280.070 |
28080 | 280100 | |||||||||
| 300-0.052 | 305+0.052 | 305+0.210+0.130 | 300.222 300.070 |
30080 | 300100 | |||||||||
