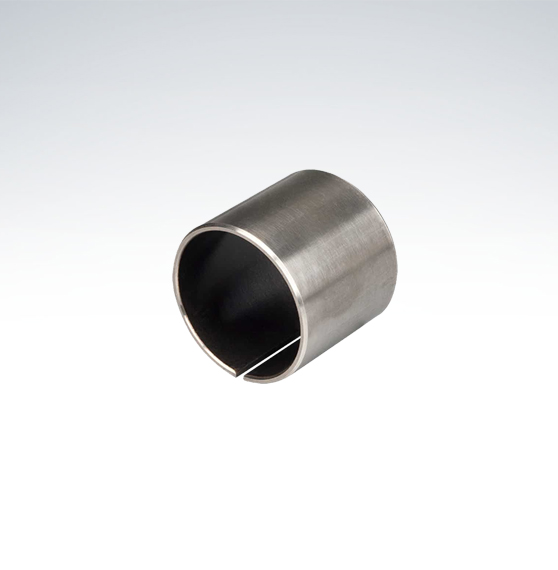

Discover the Pinnacle of Bearing Performance: When it comes to exceptional bearing solutions, nothing surpasses the efficiency and reliability of stainless steel self-lubricating bearings. Engineered with precision and crafted to perfection, these bearings are designed to operate effortlessly even in the most demanding environments. Say goodbye to constant maintenance and lubrication concerns, and say hello to smooth, frictionless performance!
| S3 | CO | Ci | β |
|---|---|---|---|
| 0.75 | 0.5±0.3 | 0.25±0.2 | 30°±5° |
| 1.00 | 0.6±0.3 | 0.30±0.2 | 30°±5° |
| 1.50 | 0.7±0.3 | 0.50±0.3 | 30°±5° |
| S3 | CO | Ci | β |
|---|---|---|---|
| 2.00 | 1.2±0.4 | 0.50±0.3 | 30°±5° |
| 2.50 | 1.8±0.6 | 0.60±0.3 | 45°±5° |
| Unit : mm | |||
| Operating Performance | |
|---|---|
| Dry | Very Good |
| Oil lubricated | Good |
| Grease lubricated | Fair |
| Water lubricated | Fair |
| Process fluid lubricated | Fair |
| Structure of the material: | ||
|---|---|---|
| Layer | Average analysis of the material | Thickness of layer |
| Sliding layer (Minimum) |
PTFE Coating | 10 - 30μm |
| Intermediate layer (Average Peak) |
CuSn11 Sintered | 200÷350μm |
| Supporting shell | SS 316 Stainless Steel | 0,70 ÷ 2,20 mm (Depending on Dim. of the Bearing) |
| TECHNICAL DATA | ||||||
|---|---|---|---|---|---|---|
| Max. load | Static | 250N/mm2 | Friction coefficient | 0.03~0.20 | ||
| Very low speed | 140N/mm2 | Max. speed | Dry running | 2 m/s | ||
| Rotating oscillating | 60N/mm2 | Hydrodynamic operation | >2 m/s | |||
| Max. PV dry running | Short-term operation | 3.6N/mm2*m/s | Thermal conductivity | 42W(m*K)-1 | ||
| Continuous operation | 1.8N/mm2*m/s | Coefficient of thermal expansion | 11*10-6*K-1 | |||
| Temp. limit | -195°c ~ +280°c | |||||
Very good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions
Suitable for lubricated applications
Suitable for linear, oscillating and rotating movements

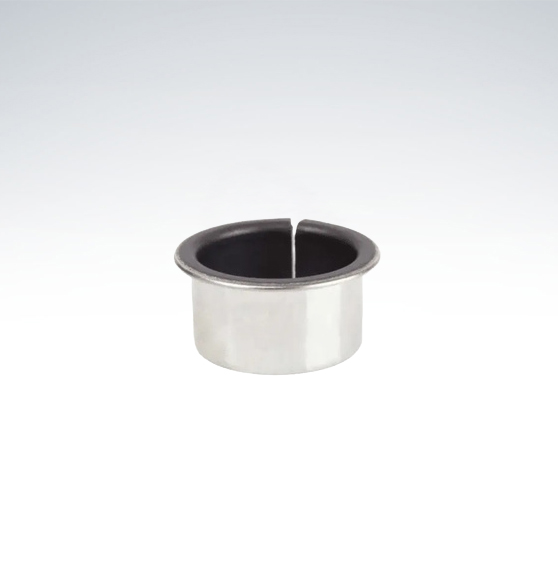

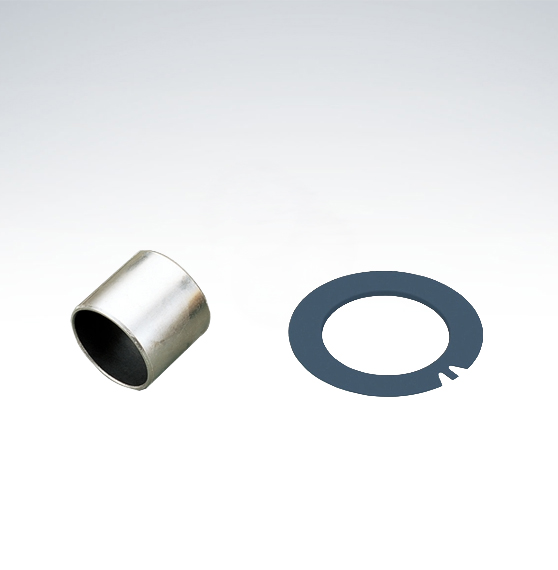

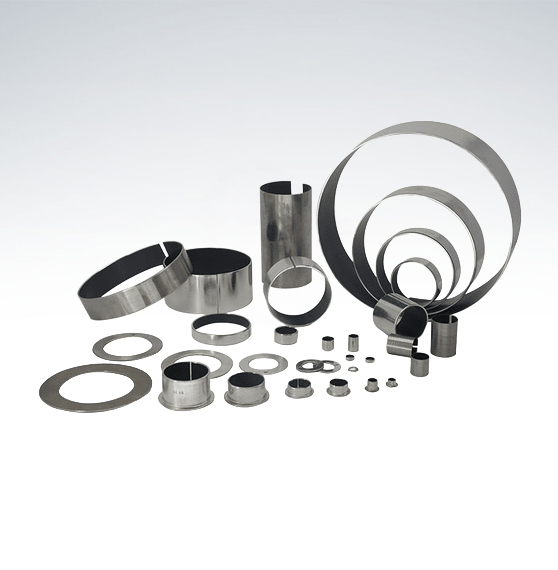

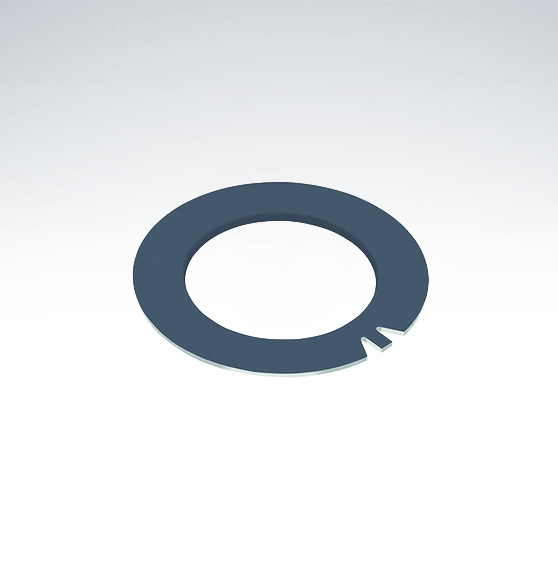

Standard forms in special dimensions, half bearings half-bearings and customized bearing designs
Industrial: Aerospace, agricultural equipment, construction equipment, food and beverage, material handling equipment, forming machines: metal, plastic and rubber; office equipment, medical and scientific equipment, packaging equipment, pneumatic and hydraulic cylinders, pumps and motors, railroad and tramways, textile machinery, valves, etc.
| AXLE | HOUSING H7 | OD Tolerance | ID After fixing | Wall thickness | L0-0.40 (d ≤ 30 L - 0.3d ≥ 30 L - 0.4) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 8 | 10 | 12 | 15 | 20 | 25 | 30 | 40 | 50 | |||||
| 6-0.013-0.028 | 8+0.015 | 8+0.055+0.025 | 6.055 5.990 |
1.005 0.980 |
0606 | 0608 | 0610 | |||||||
| 8-0.013-0.028 | 10+0.015 | 10+0.055+0.025 | 8.055 7.990 |
0806 | 0808 | 0810 | 0812 | 0815 | ||||||
| 10-0.013-0.028 | 12+0.018 | 12+0.065+0.030 | 10.058 9.990 |
1006 | 1008 | 1010 | 1012 | 1015 | 1020 | |||||
| 12-0.016-0.034 | 14+0.018 | 14+0.065+0.030 | 12.058 11.990 |
1206 | 1208 | 1210 | 1212 | 1215 | 1220 | 1225 | ||||
| 13-0.016-0.034 | 15+0.018 | 15+0.065+0.030 | 13.058 12.990 |
1310 | 1320 | |||||||||
| 14-0.016-0.034 | 16+0.018 | 16+0.065+0.030 | 14.058 13.990 |
1410 | 1412 | 1415 | 1420 | 1425 | ||||||
| 15-0.016-0.034 | 17+0.018 | 17+0.065+0.030 | 15.058 14.990 |
1510 | 1512 | 1515 | 1520 | 1525 | ||||||
| 16-0.016-0.034 | 18+0.018 | 18+0.065+0.030 | 16.058 15.990 |
1610 | 1612 | 1615 | 1620 | 1625 | ||||||
| 17-0.016-0.034 | 19+0.021 | 19+0.075+0.035 | 17.061 16.990 |
1.505 1.475 |
1710 | 1712 | 1720 | |||||||
| 18-0.016-0.034 | 20+0.021 | 20+0.075+0.035 | 18.061 17.990 |
1810 | 1812 | 1815 | 1820 | 1825 | ||||||
| 20-0.020-0.041 | 23+0.021 | 23+0.075+0.035 | 20.071 19.990 |
2010 | 2012 | 2015 | 2020 | 2025 | 2030 | |||||
| 22-0.020-0.041 | 25+0.021 | 25+0.075+0.035 | 22.071 21.990 |
2210 | 2212 | 2215 | 2220 | 2225 | 2230 | |||||
| 24-0.020-0.041 | 27+0.021 | 27+0.075+0.035 | 24.071 23.990 |
2415 | 2420 | 2425 | 2430 | |||||||
| 25-0.020-0.041 | 28+0.021 | 28+0.075+0.035 | 25.071 24.990 |
2510 | 2512 | 2515 | 2520 | 2525 | 2530 | 2540 | 2550 | |||
| 28-0.020-0.041 | 32+0.021 | 32+0.085+0.045 | 28.085 27.990 |
2.005 1.970 |
2815 | 2820 | 2825 | 2830 | 2840 | |||||
| 30-0.020-0.041 | 34+0.025 | 34+0.085+0.045 | 30.085 29.990 |
3012 | 3015 | 3020 | 3025 | 3030 | 3040 | |||||
| 32-0.025-0.050 | 36+0.025 | 36+0.085+0.045 | 32.085 31.990 |
3220 | 3230 | 3240 | ||||||||
| 35-0.025-0.050 | 39+0.025 | 39+0.085+0.045 | 35.085 34.990 |
3512 | 3515 | 3520 | 3525 | 3530 | 3540 | 3550 | ||||
| 38-0.025-0.050 | 42+0.025 | 42+0.085+0.045 | 38.085 37.990 |
3815 | 3830 | 3840 | ||||||||
| 40-0.025-0.050 | 44+0.025 | 44+0.085+0.045 | 40.085 39.990 |
4012 | 4020 | 4025 | 4030 | 4040 | 4050 | |||||
| 20 | 25 | 30 | 40 | 50 | 60 | 70 | 80 | 100 | 115 | |||||
| 45-0.025-0.050 | 50+0.025 | 50+0.085+0.045 | 45.105 44.990 |
2.505 2.460 |
4520 | 4525 | 4530 | 4540 | 4550 | |||||
| 50-0.025-0.050 | 55+0.030 | 55+0.100+0.055 | 50.110 49.990 |
5020 | 5030 | 5040 | 5050 | 5060 | ||||||
| 55-0.030-0.060 | 60+0.030 | 60+0.100+0.055 | 55.110 54.990 |
5530 | 5540 | 5550 | 5560 | |||||||
| 60-0.030-0.060 | 65+0.030 | 65+0.100+0.055 | 60.110 59.990 |
6030 | 6040 | 6050 | 6060 | 6070 | ||||||
| 65-0.030-0.060 | 70+0.030 | 70+0.100+0.055 | 65.110 64.990 |
6530 | 6540 | 6550 | 6560 | 6570 | ||||||
| 70-0.030-0.060 | 75+0.030 | 75+0.100+0.055 | 70.110 69.990 |
7040 | 7050 | 7060 | 7070 | 7080 | ||||||
| 75-0.030-0.060 | 80+0.030 | 80+0.100+0.055 | 75.110 74.990 |
7530 | 7540 | 7550 | 7560 | 7570 | 7580 | |||||
| 80-0.030 | 85+0.035 | 85+0.120+0.070 | 80.155 80.020 |
2.490 2.440 |
8040 | 8050 | 8060 | 8070 | 8080 | 80100 | ||||
| 85-0.035 | 90+0.035 | 90+0.120+0.070 | 85.155 85.020 |
8540 | 8560 | 8580 | 85100 | |||||||
| 90-0.035 | 95+0.035 | 95+0.120+0.070 | 90.155 90.020 |
9040 | 9050 | 9060 | 9080 | 90100 | ||||||
| 95-0.035 | 100+0.035 | 100+0.120+0.070 | 95.155 95.020 |
9550 | 9560 | 9580 | 95100 | |||||||
| 100-0.035 | 105+0.035 | 105+0.120+0.070 | 100.155 100.020 |
10050 | 10060 | 10080 | 100115 | |||||||
| 105-0.035 | 110+0.035 | 110+0.120+0.070 | 105.155 105.020 |
10560 | 10580 | 105115 | ||||||||
| 110-0.035 | 115+0.035 | 115+0.120+0.070 | 110.155 110.020 |
11060 | 11080 | 110115 | ||||||||
| 120-0.035 | 125+0.040 | 125+0.170+0.100 | 120.210 120.070 |
2.465 2.415 |
12060 | 12080 | 120100 | |||||||
| 125-0.035 | 130+0.040 | 130+0.170+0.100 | 125.210 125.070 |
12560 | 125100 | 125115 | ||||||||
| 130-0.040 | 135+0.040 | 135+0.170+0.100 | 130.210 130.070 |
13060 | 13080 | 130100 | ||||||||
| 140-0.040 | 145+0.040 | 145+0.170+0.100 | 140.210 140.070 |
14060 | 14080 | 140100 | ||||||||
| 150-0.040 | 155+0.040 | 155+0.170+0.100 | 150.210 150.070 |
15060 | 15080 | 150100 | ||||||||
| 160-0.040 | 165+0.040 | 165+0.170+0.100 | 160.210 160.070 |
16060 | 16080 | 160100 | 160115 | |||||||
| 180-0.040 | 185+0.046 | 185+0.210+0.130 | 180.216 180.070 |
2.465 2.415 |
18080 | 180100 | ||||||||
| 190-0.046 | 195+0.046 | 195+0.210+0.130 | 190.216 190.070 |
19080 | 190100 | |||||||||
| 200-0.046 | 205+0.046 | 205+0.210+0.130 | 200.216 200.070 |
20060 | 20080 | 200100 | ||||||||
| 220-0.046 | 225+0.046 | 225+0.210+0.130 | 220.216 220.070 |
22080 | 220100 | |||||||||
| 250-0.046 | 255+0.052 | 255+0.260+0.170 | 250.222 250.070 |
25080 | 250100 | |||||||||
| 260-0.052 | 265+0.052 | 265+0.260+0.170 | 260.222 260.070 |
2.465 2.415 |
26080 | 260100 | ||||||||
| 280-0.052 | 285+0.052 | 285+0.210+0.130 | 280.222 280.070 |
28080 | 280100 | |||||||||
| 300-0.052 | 305+0.052 | 305+0.210+0.130 | 300.222 300.070 |
30080 | 300100 | |||||||||
